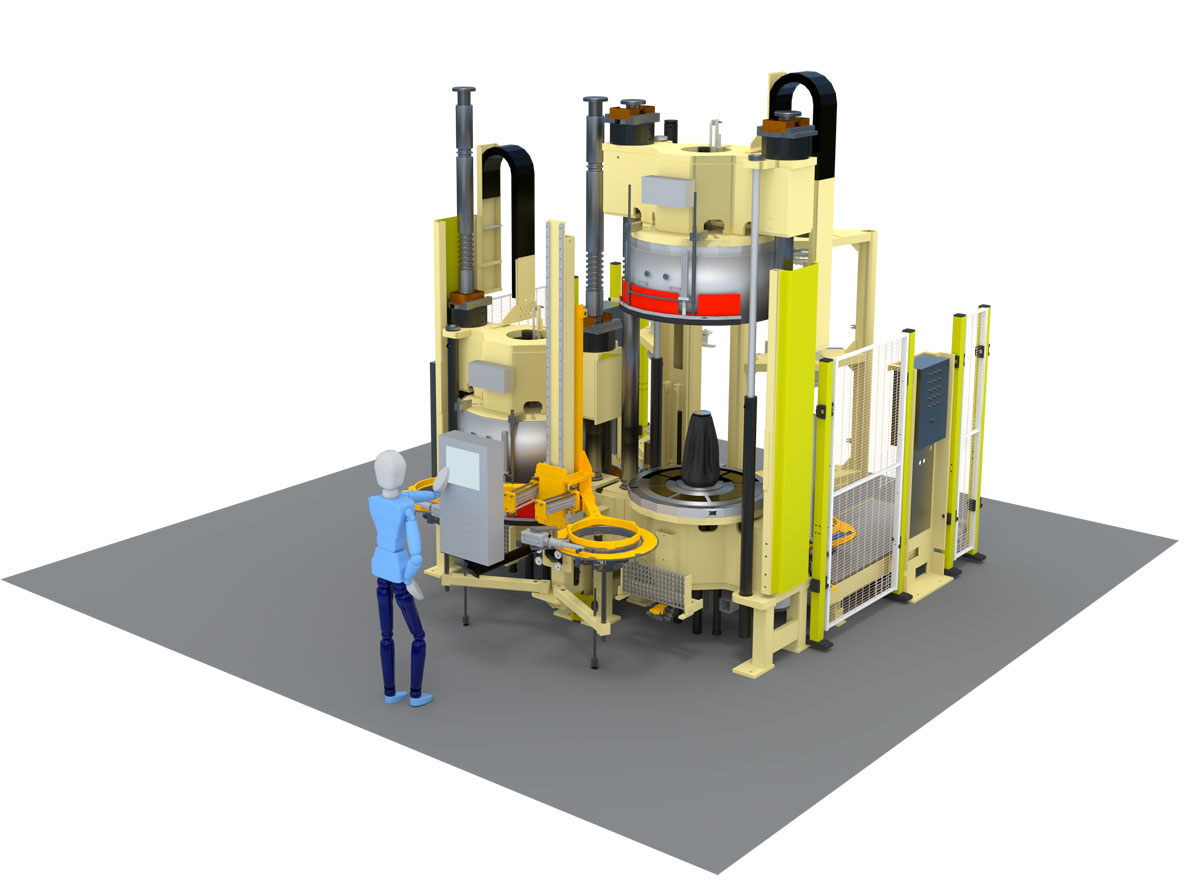

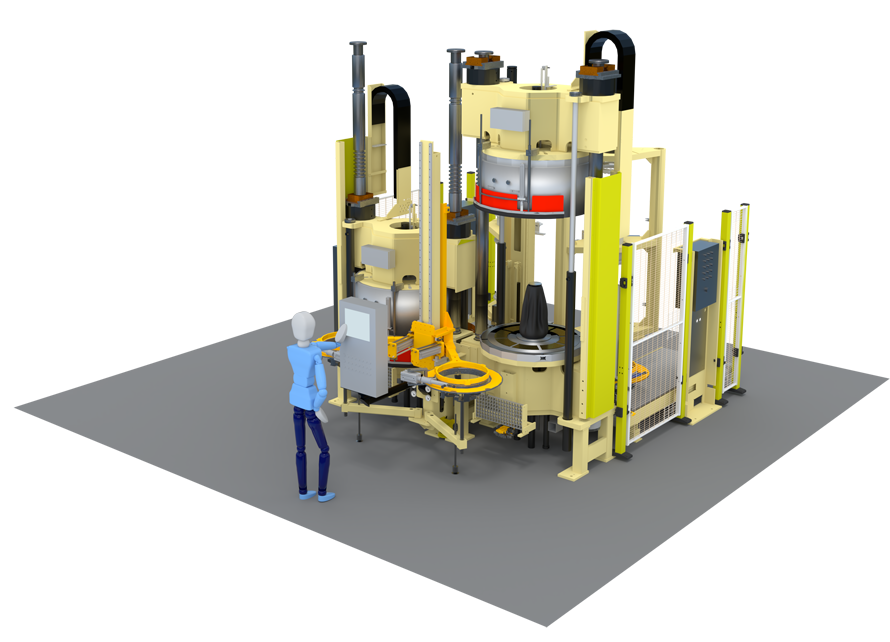

Hydraulic Curing Press for passenger car (PCR)

Product information

HF, always driven to bring innovative concepts to the market, brought the first hydraulic column type curing press to the tire industry in 1997. Since then we continued to develop this product to meet the demanding requirements of our customers.

While we design presses for your further expansion needs, we also understand the importance of utilizing your existing infrastructure in your plants all around the world.

Due to our compact design we are able to provide slim solutions for your replacement purposes.

HF presses can be built modularly to include the required center mechanism SMO, loader and unloader chuck, green tire stands, cooling conveyors with or without PCI and associated safety items.

Features

  • Main locking and squeeze components outside of the heated area
  • Achieves optimal tire concentricity
  • Press availability at benchmark level
  • Straight and angle type press designs available
  • Reduced wear, longer press life, improved cycle time and uniformity
  • Easier to maintain due to improved access to the important areas of the press
  • Proven energy saving systems
  • Built according to the latest safety, environmental and manufacturing requirements

Main Technical Parameters

Item
Cavity control
Max. closing force
Unit
kN
(t-force)
46'' Curing Press common/independent
1.570
(160)
48'' Curing Presscommon/independent
1.570/1.770/1.960
(160/180/200)
52'' Curing Presscommon/independent
1.770/1.960/(2.450)
(180/200/(250))
Tire Parameters
Min./max. Bead diameter inch 12-20/14-25 12-20/14-25 14-25
Max. Green tire outer diameter mm (inch) 850 (33,5) 920 (36,2)  1.000 (39,4)
Max. Cured tire outer diameter mm (inch) 850 (33,5) 920 (36,2) 1.000 (39,4)
Max. Cured tire height mm (inch) 406 (16) 450 (18) 450 (18)
Mold Container
Type of mold   2-piece/segmented  2-piece/segmented  2-piece/segmented
Max. outer diameter mm (inch) 1.168 (46)  1.219 (48)  1.321 (52)
Min./max. mold height mm (inch) 508 (10-20)  250-610 (10-24)  250-610 (10-24)
Heating Platen
Outer diameter mm (inch) 1.168 (46) 1.219 (48) 1.321 (52)
Center Mechanism   bag-in-well/standing post
(pit or pitless design)
 bag-in-well/standing post
(pit or pitless design)
 bag-in-well/standing post
(pit or pitless design)
Green Tire Stand

  hanging/shoulder type
(single or multiple)
hanging/shoulder type
(single or multiple)
hanging/shoulder type
(single or multiple)
Pneumatics
Hydraulic System
from 1:1 to 1:6 (or more)

Heating System
piping and manifold concept available
various media available (steam/N2, steam/steam, hot water, etc.)
  customized to meet your requirements
PLC Systems/Automation   main suppliers available
Safety   according to local safety standards
